Qt Quick Controls - Text Editor

The Text Editor Example presents a sample HTML file using the TextArea control, preserving the HTML formatting. The application comes with two user interfaces; one for traditional desktop platforms with a mouse pointer, and another simpler, touch-oriented version.

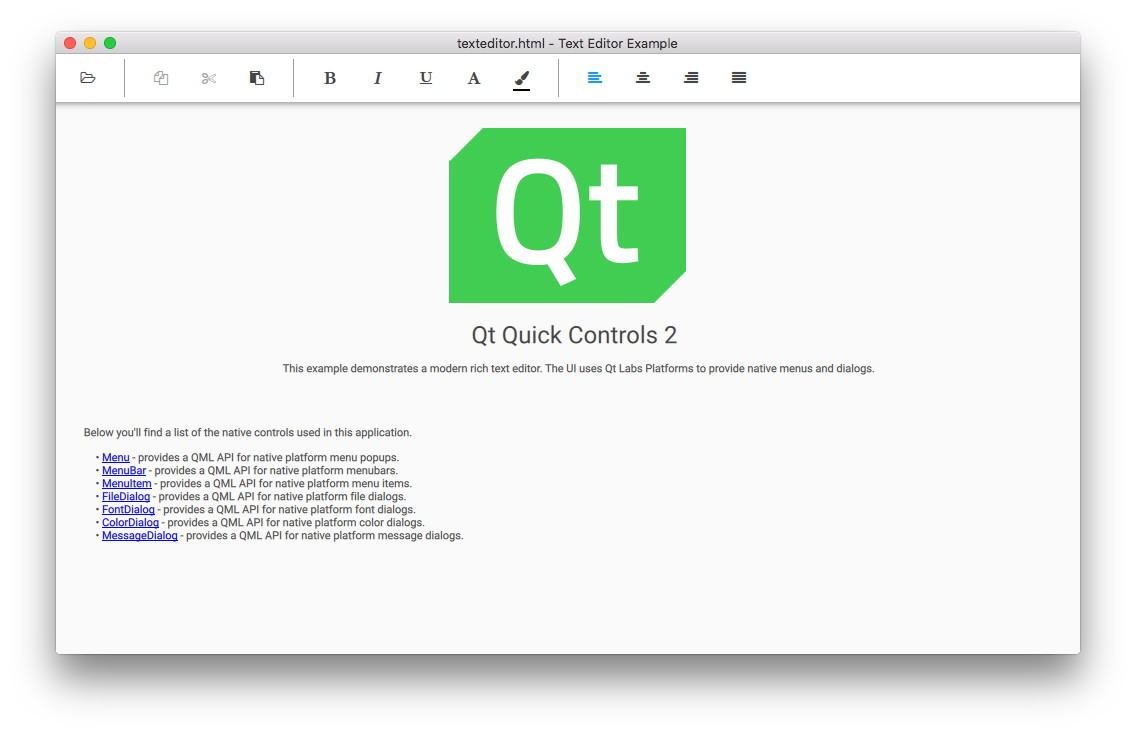

Desktop User Interface

The desktop version is a complete text editor with capabilities for formatting text, and opening and saving HTML and plain text files. It demonstrates the native-looking dialogs and menus using the Qt Labs Platform module. These types are mostly suitable for desktop platforms with support for multiple top-level windows, a mouse pointer, and moderate screen size.

The desktop UI uses FileDialog for opening and saving files:

    FileDialog {
        id: openDialog
        fileMode: FileDialog.OpenFile
        selectedNameFilter.index: 1
        nameFilters: ["Text files (*.txt)", "HTML files (*.html *.htm)", "Markdown files (*.md *.markdown)"]
        currentFolder: StandardPaths.writableLocation(StandardPaths.DocumentsLocation)
        onAccepted: document.load(selectedFile)
    }

    FileDialog {
        id: saveDialog
        fileMode: FileDialog.SaveFile
        defaultSuffix: document.fileType
        nameFilters: openDialog.nameFilters
        selectedNameFilter.index: document.fileType === "txt" ? 0 : 1
        currentFolder: StandardPaths.writableLocation(StandardPaths.DocumentsLocation)
        onAccepted: document.saveAs(selectedFile)
    }

It uses FontDialog and ColorDialog for choosing fonts and colors:

    FontDialog {
        id: fontDialog
        onAccepted: document.font = selectedFont
    }

    ColorDialog {
        id: colorDialog
        selectedColor: "black"
        onAccepted: document.textColor = selectedColor
    }

It also uses Menu and MenuItem that provide a context menu to format text within:

    Platform.Menu {
        id: contextMenu

        Platform.MenuItem {
            text: qsTr("Copy")
            enabled: textArea.selectedText
            onTriggered: textArea.copy()
        }
        Platform.MenuItem {
            text: qsTr("Cut")
            enabled: textArea.selectedText
            onTriggered: textArea.cut()
        }
        Platform.MenuItem {
            text: qsTr("Paste")
            enabled: textArea.canPaste
            onTriggered: textArea.paste()
        }

        Platform.MenuSeparator {}

        Platform.MenuItem {
            text: qsTr("Font...")
            onTriggered: function () {
                fontDialog.selectedFont = document.font
                fontDialog.open()
            }
        }

        Platform.MenuItem {
            text: qsTr("Color...")
            onTriggered: function () {
                colorDialog.selectedColor = document.textColor
                colorDialog.open()
            }
        }
    }

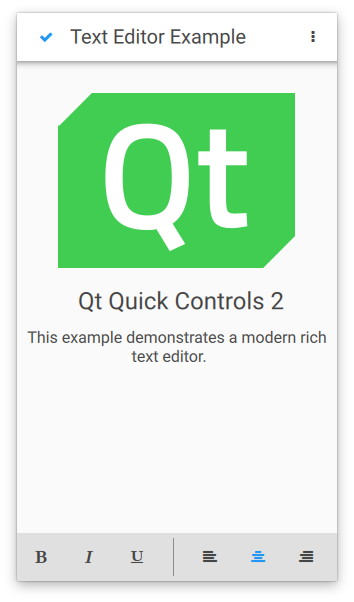

Touch User Interface

The touch user interface is a simplified version of the text editor. It is suitable for touch devices with limited screen size. The example uses file selectors to load the appropriate user interface automatically.

Unlike the desktop version, which uses top-level dialogs, the touch version uses the QML Dialog type, which is not a top-level window. This type of dialog is fully supported on mobile and embedded platforms that do not support multiple top-level windows.

    Dialog {
        id: aboutDialog
        standardButtons: Dialog.Ok
        modal: true
        x: parent.width / 2 - width / 2
        y: parent.height / 2 - height / 2

        contentItem: Label {
            text: qsTr("Qt Quick Controls - Text Editor Example")
        }
    }

C++ Backend

Both user interfaces use the same C++ backend, which supports opening, formatting, and editing a document. The C++ class, DocumentHandler, extends QObject and is registered as a QML type under the namespace io.qt.examples.texteditor 1.0.

The following snippets show how the type is registered under a namespace and later imported and instantiated by main.qml. For more information about registering C++ classes as QML types, see Defining QML Types from C++.

QML type registration:

#include <QtQml/qqml.h>
...
qmlRegisterType<DocumentHandler>("io.qt.examples.texteditor", 1, 0, "DocumentHandler");
...

QML namespace import:

import io.qt.examples.texteditor 1.0

QML instance:

    DocumentHandler {
        id: document
        document: textArea.textDocument
        cursorPosition: textArea.cursorPosition
        selectionStart: textArea.selectionStart
        selectionEnd: textArea.selectionEnd

        property alias family: document.font.family
        property alias bold: document.font.bold
        property alias italic: document.font.italic
        property alias underline: document.font.underline
        property alias strikeout: document.font.strikeout
        property alias size: document.font.pointSize

        Component.onCompleted: {
            if (Qt.application.arguments.length === 2)
                document.load("file:" + Qt.application.arguments[1]);
            else
                document.load("qrc:/texteditor.html")
        }
        onLoaded: function (text, format) {
            textArea.textFormat = format
            textArea.text = text
        }
        onError: function (message) {
            errorDialog.text = message
            errorDialog.open()
        }
    }

Running the Example

To run the example from Qt Creator, open the Welcome mode and select the example from Examples. For more information, visit Building and Running an Example.

Example project @ code.qt.io
